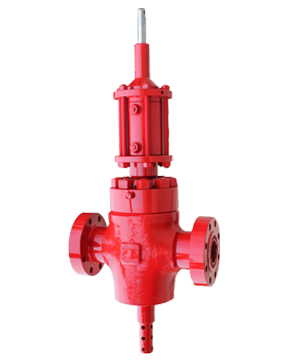

Hydraulic Gate Valve
Click to Enlarge

Hydraulic Gate Valves

---

Oil Field Valve manufactures Hydraulic Gate Valve in the following sizes:

• 2 1/16" - 4 1/16" 5,000 PSI

• 2 1/16" - 4 1/16" 10,000 PSI

• 2 1/16" 15,000 PSI

Our valves go through multi-point inspections during the manufacturing process. Once the valves are assembled, they go through final inspection in our quality department to ensure that each valve is working to its specifications. All OFV Gate Valves are 100% interchangeable with Cameron F and F.C. gate valves and we keep a large parts inventory in stock. We give our customers the option to purchase reconditioned C.I.W. and Oil Field Valve brand valves.

All O.F.V. valves are finished machined, quality control inspected, assembled, and tested at our facilities in Lafayette, Louisiana.

Need Parts?

---

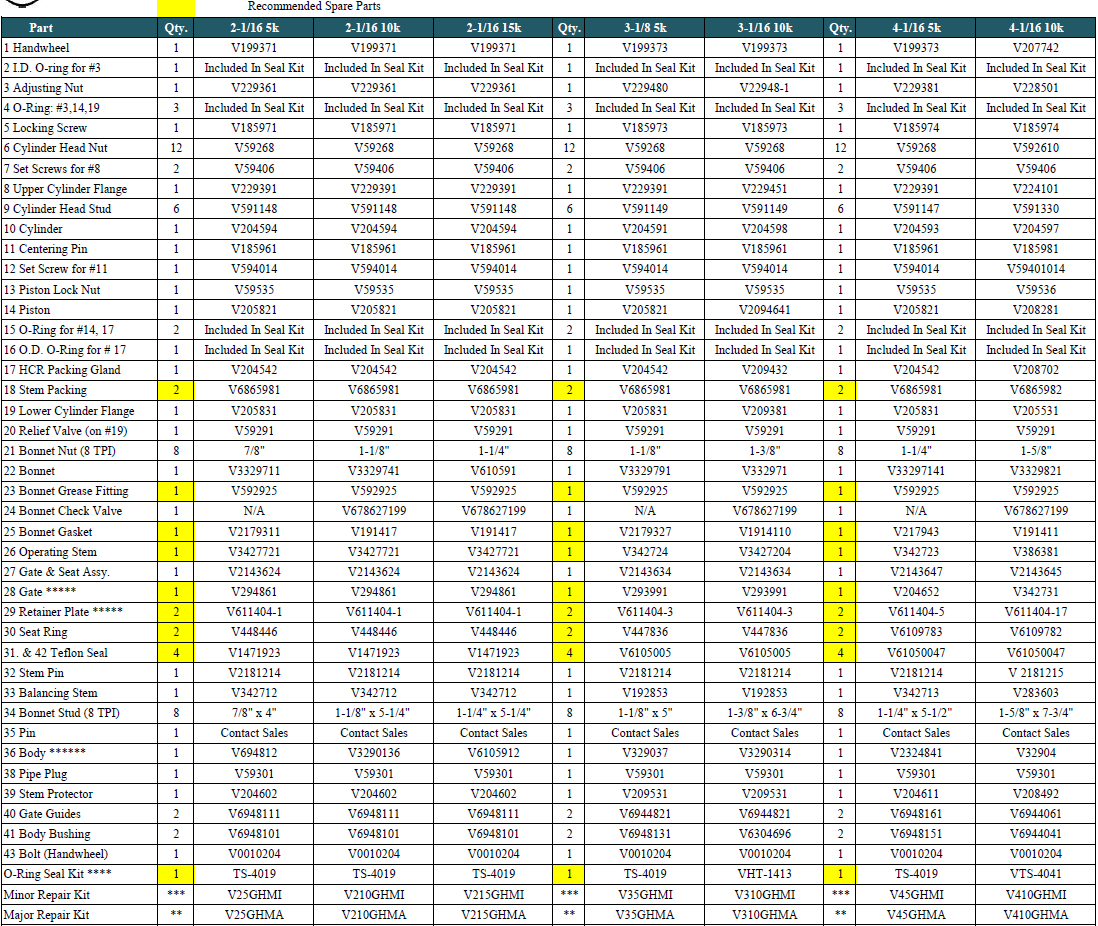

Part listings for Hydraulic Gate Valves:

• 2 - 1/16" 5M, 2 - 1/16" 10M, and 2 - 1/16" 15M

• 3 - 1/8" 5M and 3 - 1/16" 10M

• 4 - 1/16" 5M, 4 - 1/16" 10M, and 4 - 1/16" 15M

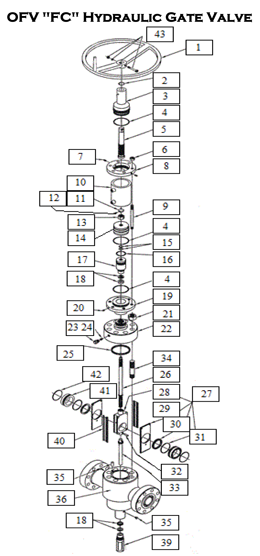

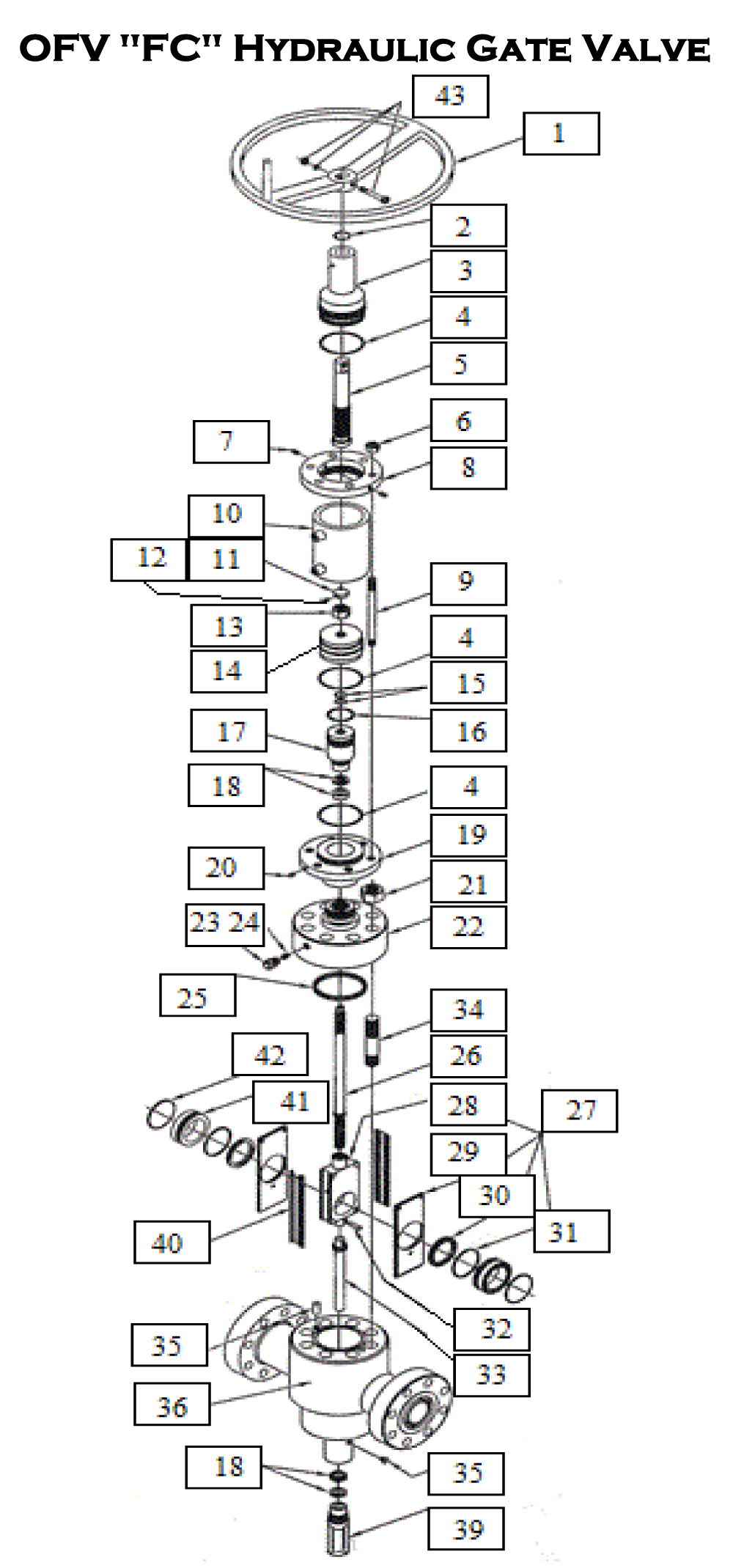

Hydraulic Gate Valve Parts

---

Hydraulic Gate Valve Parts for 2 - 1/16" 5M, 2 - 1/16" 10M, and 2 - 1/16" 15M
